Camera Module
Bonding Compact Camera Modules (CCM)

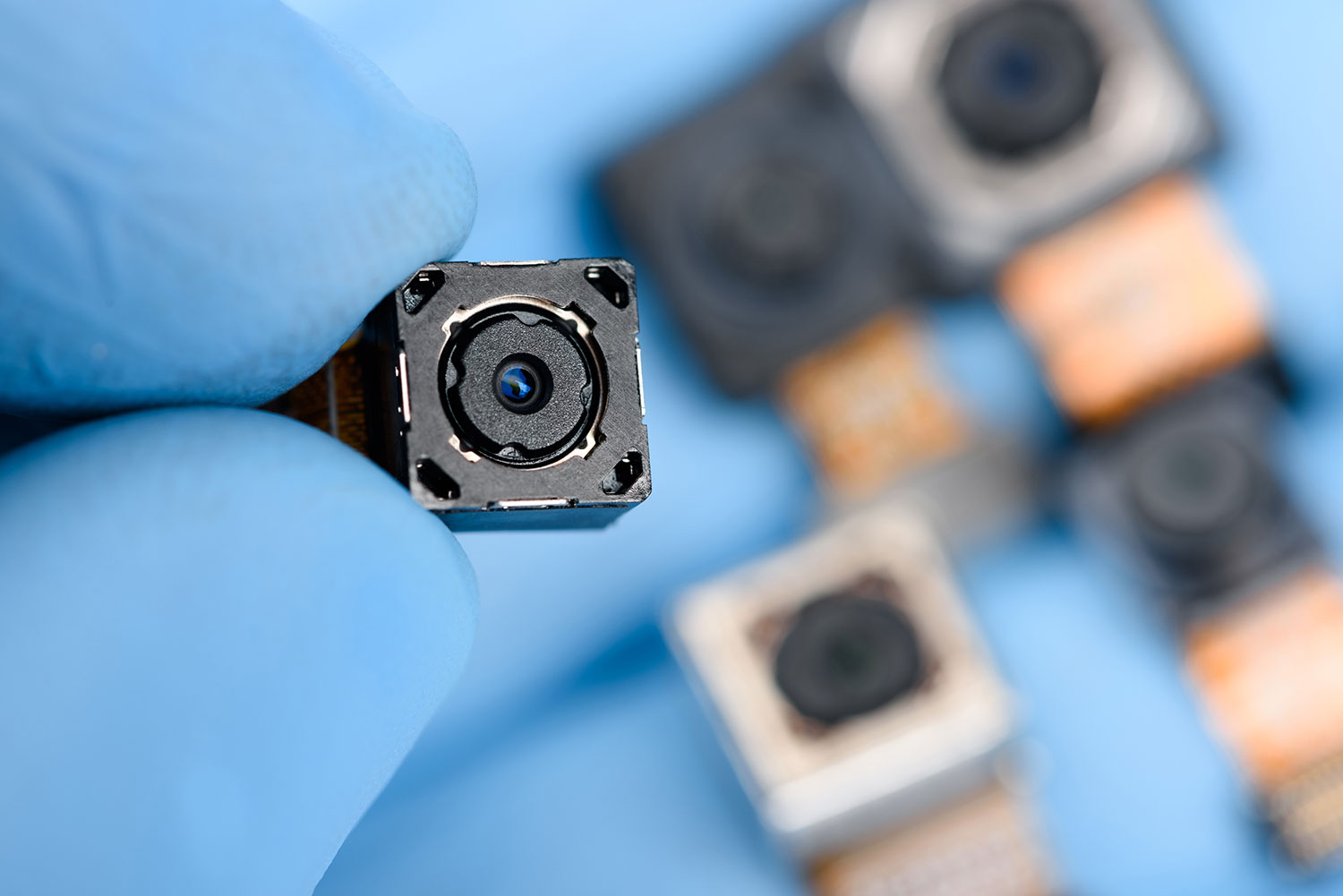

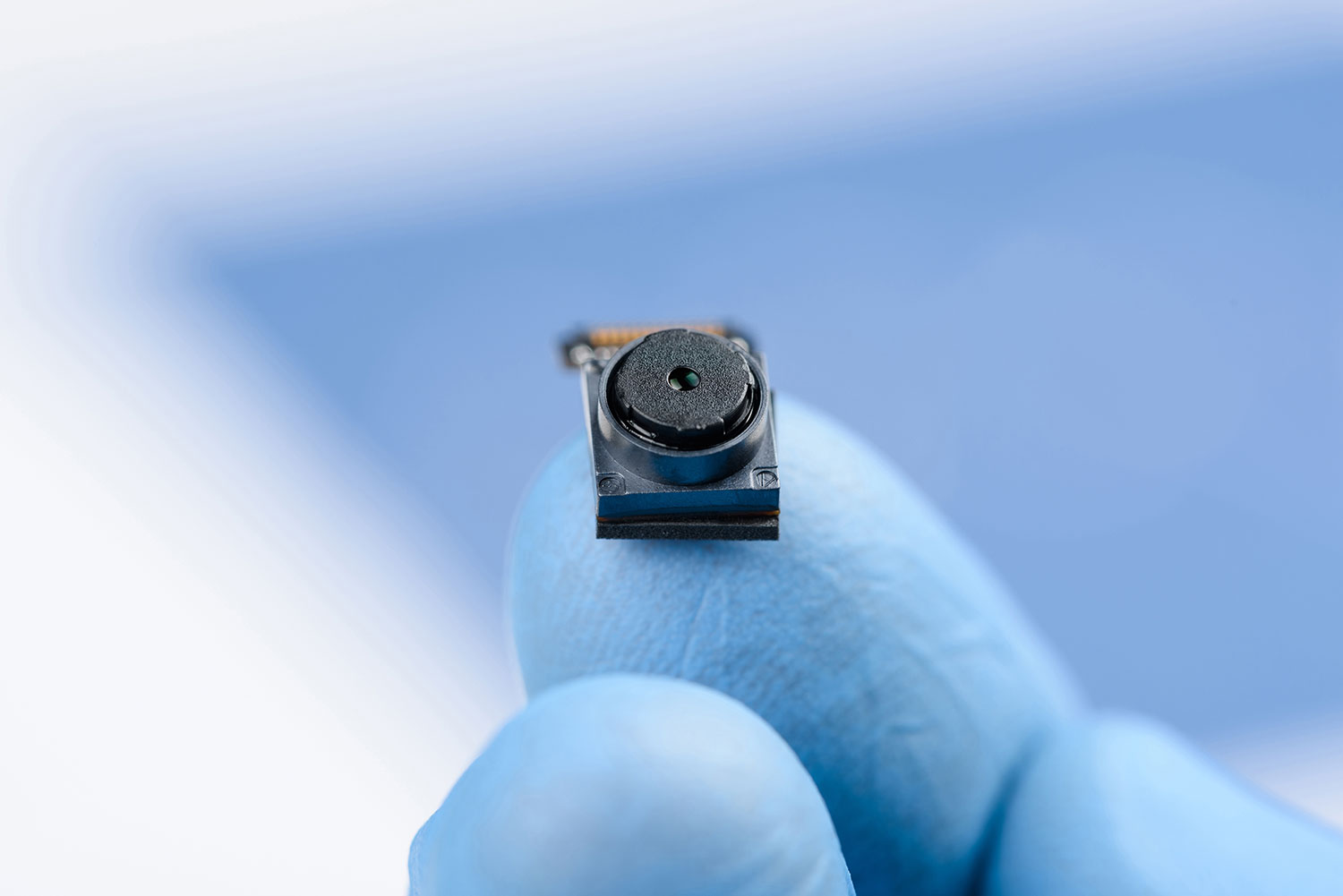

Compact Camera Modules (CCM) are becoming increasingly integrated into both our personal electronic devices and automobiles. The ever-increasing quality of a mobile’s camera means that more camera modules need to be integrated into our device to ensure exceptional clarity over a large range of distance. The emergence of Advanced Driver Assistance Systems (ADAS) in the automotive industry has also produced an increase in demand for CCMs worldwide.

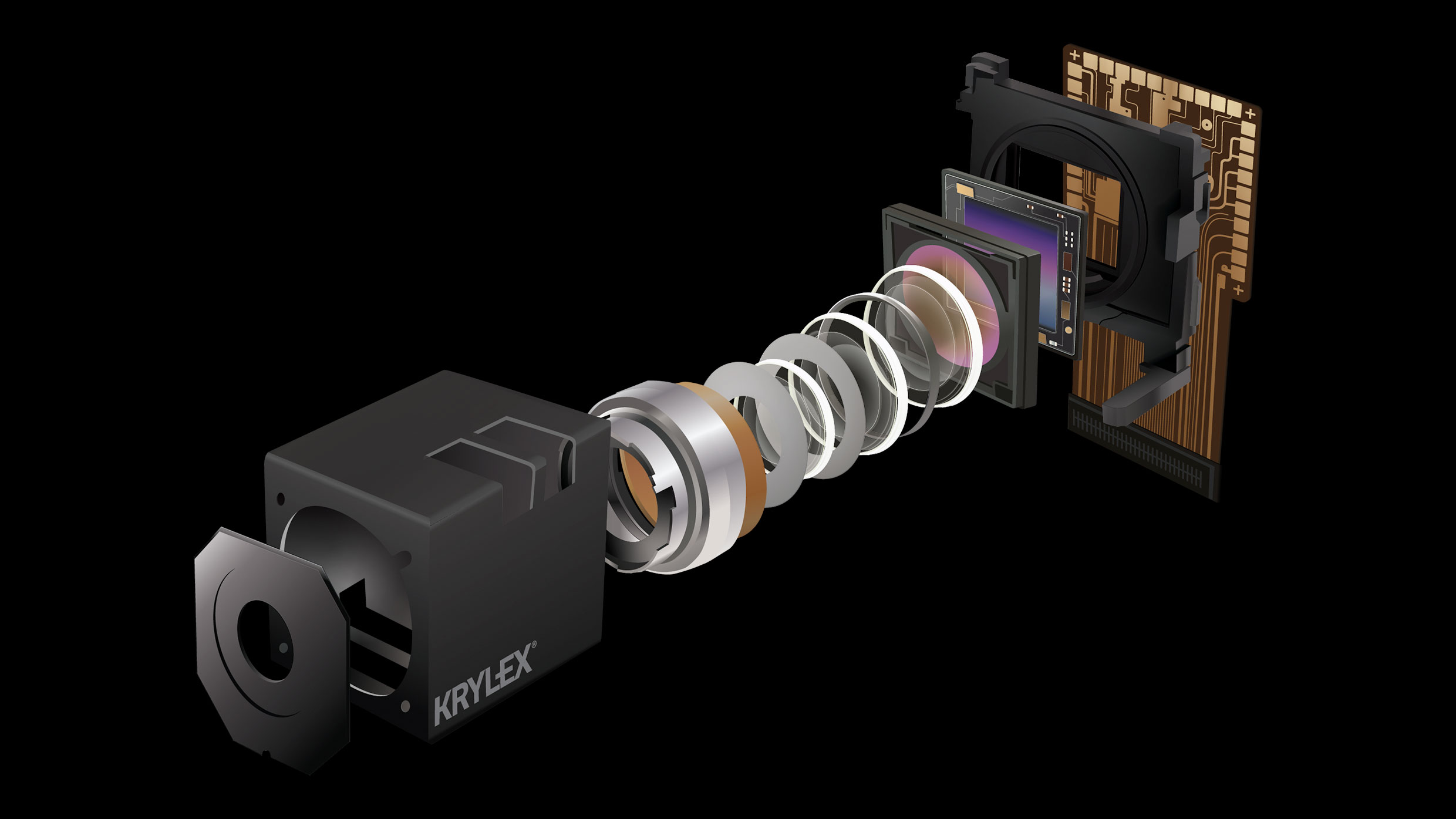

Camera Solutions
Hover over the targets to read more information
ACTIVE ALIGNMENT
ACTIVE ALIGNMENT
UV/Thermal cure adhesives provide instant fixturing during alignment. Low temperature thermal cure and excellent environmental resistance ensures permanent, precise alignment. KD7009 can cure at an industry leading 60°C.
LENS BARREL BONDING
KU5225 is fast curing UV adhesives with low surface tack and low outgassing reduce risk of contamination.
IR FILTER BLOCKING
KU5146 UV curable acrylate adhesive is optically clear with a high refractive index to meet strict optical requirements; light blocking, low reflectivity adhesives with excellent impact resistance. Fast curing also allows for high production throughput.
LENS BONDING
Fast fixturing UV adhesives with high Ti reduce risk of migration to unwanted sections of assembly. KU5156 is our next generation lens-to-barrel adhesive and has both excellent adhesion to LCP and high impact performance.
IMAGE SENSOR BONDING
High reliability adhesives with optimized modulus for toughness and impact resistance allow for fast assembly without compromising performance.
FPC ANCHORING & REINFORCEMENT
UV adhesives with high peel strength and flexibility provide structural integrity to FPS connectors.
ACTIVE ALIGNMENT
UV/Thermal cure adhesives provide instant fixturing during alignment. Low temperature thermal cure and excellent environmental resistance ensures permanent, precise alignment. KD7009 can cure at an industry leading 60°C.
LENS BARREL BONDING
KU5225 is fast curing UV adhesives with low surface tack and low outgassing reduce risk of contamination.
IR FILTER BLOCKING
KU5146 UV curable acrylate adhesive is optically clear with a high refractive index to meet strict optical requirements; light blocking, low reflectivity adhesives with excellent impact resistance. Fast curing also allows for high production throughput.
LENS BONDING
Fast fixturing UV adhesives with high Ti reduce risk of migration to unwanted sections of assembly. KU5156 is our next generation lens-to-barrel adhesive and has both excellent adhesion to LCP and high impact performance.
IMAGE SENSOR BONDING
High reliability adhesives with optimized modulus for toughness and impact resistance allow for fast assembly without compromising performance.
FPC ANCHORING & REINFORCEMENT
UV adhesives with high peel strength and flexibility provide structural integrity to FPS connectors.
KRYLEX® Camera Module Assembly Adhesives range ensures:
- High manufacturing throughput achieved through on demand curing UV technology
- Excellent optical performance related to low shrinkage and low outgassing characteristics
- RoHS- complaint, isocyanate free and solvent free
- Excellent dispensability related to a high TI for high aspect ratio
- Excellent mechanical performance leading to outstanding reliability and functionality
Whether it is either fixed or auto focus, these CCMs can use between 5 to 10 different adhesives in their construction. The specification of the right adhesive is critical to the device’s performance and reliability. Depending on the specific bonding application, each adhesive will have very different performance requirements.
